Push Locking Multi Pin Connectors Waterproof , Male Female Watertight Electrical Connectors

Name: Push Locking Multi Pin Connectors Waterproof Male Female Watertight Electrical Connectors
Brand: Jnicon
Price: 1 USD

Brand Name : Jnicon

Model Number : Multi Pin Waterproof Connector

Certification : TUV, UL, 3C, CE, ROHS, ISO90001

Place of Origin : China

MOQ : 100 (10 Pairs of samples)

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pair/day

Delivery Time : 3-5 days

Packaging Details : 1.plastic bag 2.carton 3.As per customer's requirement

product type : Push Locking 3+5 Pin Multi Pin Waterproof Connector

current rating : 15A+5A

voltage rating : 300V+60V

cable gauge : 20~16AWG

contact diameter : ∅ 2.0mm+∅ 0.8mm

operation temperature : -40℃~105℃

Contact Now

Push Locking 3+5 Pin Multi Pin Waterproof Connector Male Female Cable Welding IP67

More details of 3+5 Pin Multi Pin Waterproof Connector IP67:

• push locking style,easy to assemble.
• High current application safety and stable wire.
• The current and voltage rating of multi pin waterproof connector are 15A+5A/300V+60V.
• The current/voltage rating of IP67(push locking) or IP68(screw locking).
• multi-pins(2-22 pins) for varies industrial demands.
• Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
• the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.

The specifiction of 2+4 pin waterproof panel mount connector

SPECIFICATION
Designation		pin male female waterproof power connector
Model No.		53-100811-01 and 53-200831-01
Item		Specification
1. Electrical characteristics
1A	Contact Resistance		10mΩ max.

1C	Withstand Voltage		1000V AC There shall be no breakdown.

1D	Rating		15A+5A/300V+60V.

2. Mechanical
2A	Mating/Unmating force		Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N

2B	Life test		Mating & Unmating 500 cycles

3. Material
3A	Contact Plating		1u" gold plating
3B	Contact material		Brass (C3604)
3C	Housing material		PA66

Application:

M19 series 3+5 pin Waterproof multi pin connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.

It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

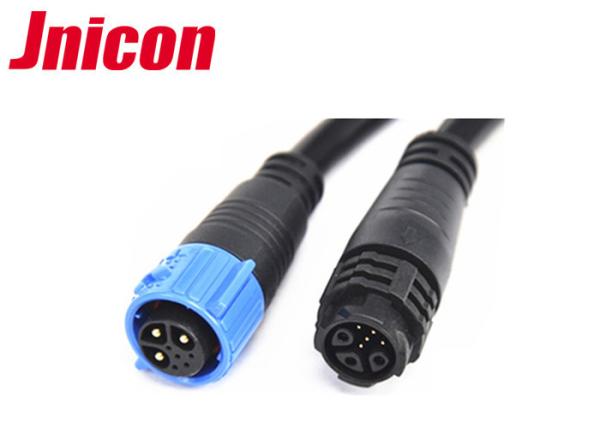

Product detail picture

Push Locking Multi Pin Connectors Waterproof , Male Female Watertight Electrical Connectors

Packing and Delivering

Packaging Details: 50pcs to a skin packing to a carton Customized packing is welcome , MOQ of printing customized box is 1000 pcs each model .
Delivery Details: sample about 3 working days, products in 7 days after payment.
Weight ＜100 KG , we usually transport the good by air express .
If you have shipping agent please tell me , then we can send it to him / her.
