IP67 Electrical 3 Way Waterproof Cable Connector T Type 2 Pin Wiring Connector Plug

Name: IP67 Electrical 3 Way Waterproof Cable Connector T Type 2 Pin Wiring Connector Plug
Brand: Jnicon
Price: 1 USD

Brand Name : Jnicon

Model Number : Waterproof Cable Connector

Certification : UL/CE/TUV/CQC/RoHS

Place of Origin : Guangdong,China

MOQ : 100 (10 Pairs of samples)

Price : Negotiable

Payment Terms : L/C,T/T,Paypal,Western Union

Supply Ability : 10000pcs/day

Delivery Time : 3-5 working days

Packaging Details : 1.Plastic bag; 2.Carton; 3.As per customer's requirement

Application : Lighting

Voltage rated : 300V

Color : Black/Blue

Warranty : 3 years

Contact Now

IP67 Electrical 3 Way 2Pin Waterproof Cable Connector T Type Wiring Connector Plug

Product Description

* Current rating: 20A
* Accepted Max. Cable OD: 11 mm
* UL, TUV, CCC, CE, RoHS approved
* We could help to attach cable in any length and process terminals if required
* Customer's drawings and designs are welcome, as we have our own professional R&D team to provide you various solutions

Product Features

1. Four-point spiral locking with military standard.
2. Optional shell color to meet different environmental requirements.
3. Rated current: 20A rms.
4. The IP67 protection level is met when the product is connected.

Product Parameter

Specifications
Connecting mode	Push locking type
Protection level	IP67
Cable specification	0.75mm² ~ 2.5mm² /20~14AWG
Diameter range	Φ5mm ~Φ11mm
Contact diameter×Qty	Φ1.8x3
Current rating(A)	20A
Operating voltage	500V
Withstand voltage	2500V

To Be Your The Best Connection Expert

1) IP67 waterproof in locked condition with ISO9001 management under efficient service

2) Provide free samples within 3 working days if it is normal product with existing tooling

3) Effective communication and rapid response

4) Early design-in capability,OEM, ODM are available

5) Globalization, localization of operation and management

6) 3 years warranty

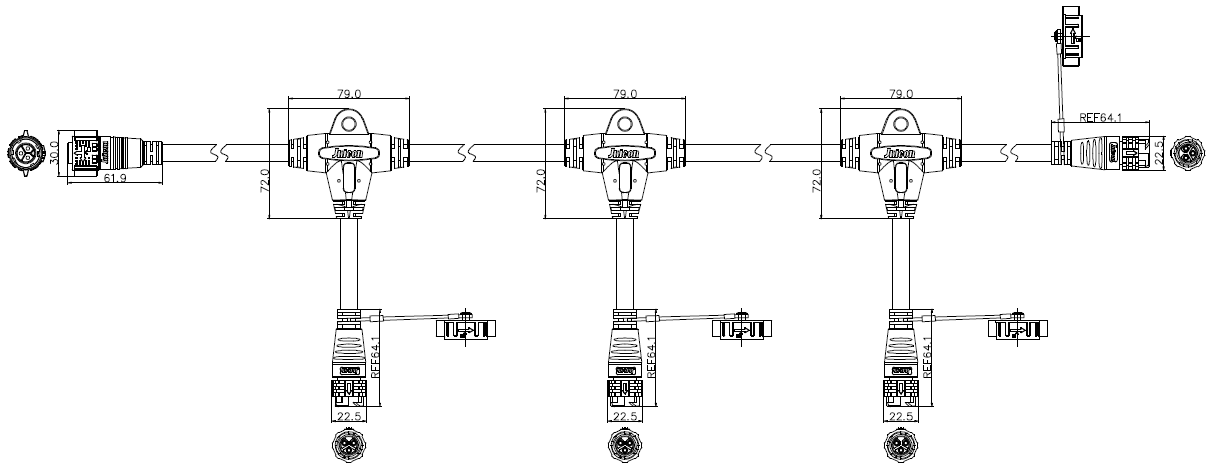

Product Image

IP67 Electrical 3 Way Waterproof Cable Connector T Type 2 Pin Wiring Connector Plug
