3+5 Data Power Aviation Electrical Connectors Waterproof Molded With Cable

Brand Name : Jnicon

Model Number : M19

Certification : UL , CE , CQC , ROHS ,TUV

Place of Origin : Shenzhen China

MOQ : 100 (10 Pairs of samples)

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Paypal

Supply Ability : 10000 pcs / day

Delivery Time : 3 - 5 days

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

Name : Data & Power Waterproof Connector

Type of Connector : Molded with Cable Connector

Contact Material : Brass / Copper Alloy

Housing / Shell : High-performance engineering plastic

Gender : Pin Male and Pole Female

Contact Resistance : 10mΩ max

Contact Now

3+5 Data & Power Aviation Waterproof Power Connector Molded With Cable IP67

Description / Details of Waterproof Power Connector

  1. For waterproof power connector , we also call it waterproof electrical connector .
  2. As the picture show , there are 2 part of connector : male and female connector , can be push lock assembly field connector or molded with cable connector .
  3. Method of connector connect with cable by soldering ( it can also be the screw terminal connector )
  4. there also many another name of waterproof power connectors . like waterproof circular connector , waterproof aviation connector , waterproof plug and socket connector , waterproof cable connector , waterproof wire connector etc .

More Information about 3+5 Data & Power Connector

  1. We calll it 3+5 data & power waterproof connector .
  2. There are 2 type of copper needles : 3pin for power , 5pin for data
  3. Material of copper needles : brass / gold plating
  4. Material of housing / shell : PA66
  5. Apply in hot and cold environment : - 40 ℃ - + 105 ℃
  6. Fireproof explosion-proof

Application of Connecor

For application of M19 connector , mainly apply in high current equipment , like lamp requiring high current , automotive charging , new energy , automation equipment , marine electronis , armarium , security and protection etc .

Electrical characteristics
Contact Resistance 10mΩ max.
Insulation Resistance 10MΩ min.
Withstand Voltage 1500V AC There shall be no breakdown.
Rating / Current and Voltage 15A+5A / 300V+60V
Mechanical
Mating/Unmating force Mating & Unmating Force: 10~30N
Life test Mating & Unmating 500 cycles

Picture / Photo Show - 3 + 5 Pin Waterproof Power Connectors

Push lock 3+5pin male molded with cable connector

3+5 Data Power Aviation Electrical Connectors Waterproof Molded With Cable

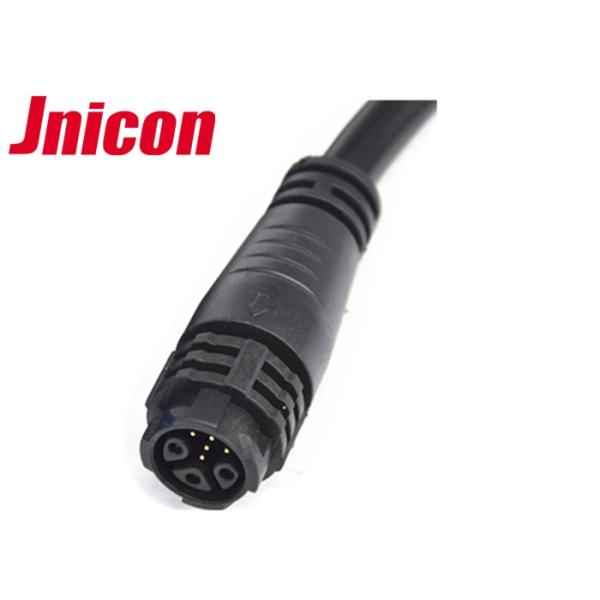

Push lock 3+5 pole female molded with cable connector

3+5 Data Power Aviation Electrical Connectors Waterproof Molded With Cable

We are interested in your connector .

Please do as below step by step :

Step 1 : confirm the number of contact

Step 2 : confirm the current and voltage , can it meet your request . Or just tell me your requirement .

Step 3 : confirm the cable specification and cable OD

Step 4 : confrim the material of cable

Step 5 : confrim the length of cable
